Light Weight Vacuum Resin Cast Current Transformer Fully Enclosed

Name: Light Weight Vacuum Resin Cast Current Transformer Fully Enclosed
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : LZZBJ9-12A1

Certification : Kema, ISO, SGS, CE, TUV

Place of Origin : Shenzhen

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : Plywood

Rated insulation level : 12/28/75 kv

Rated transformation ratio : 10-3150/5

Installation site : Indoor

Type : MV Current Transformer

Accuracy classes : 0.2/0.5 0.5/5P10

Frequency : 50/60HZ

Material : Epoxy Resin

Cast : Vacuum

Contact Now

TUV Proved 12kv MV Current Transformer with Single-Phase Epoxy Resin Casting Insulation

1.Product Introduction:

LZZBJ9-12A1(A2) current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50- 60Hz and highest voltage for equipment 12 kV .

2. Technical Data:

1. Rated insulation voltage: 12/28/75kV etc.

2. Rated frequency: 50/60hz

3. Installation Site: Indoor

4. Standards: IEC60044-1(IEC61869-1&2)

3. Specification:

Rated transformation ratio(A)	Accuracy classes combination	Rated output(VA)			(ALF)	(FS)	Short-time thermal current Ith(kA/S)	Rated dynamic current Idyn(kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P	10 15	15	15	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5				20			63	125
1000/5							80	160
1200～1500/5							80	160
1500～2000/5							100	160
2000～3150/5							130	160

Rated transformation ratio(A)	Accuracy classes combination	Rated output(VA)			(ALF)	(FS)	Short-time thermal current Ith(kA/S)	Rated dynamic current Idyn(kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-200/5	0.2S//0.5/ 10P 0.5/0.5/10P	10 15	15	15 20	10 15	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200～1500/5							80	160
1500～2000/5							100	160
2000～3150/5							130	160

4. Outline Drawing

Light Weight Vacuum Resin Cast Current Transformer Fully Enclosed

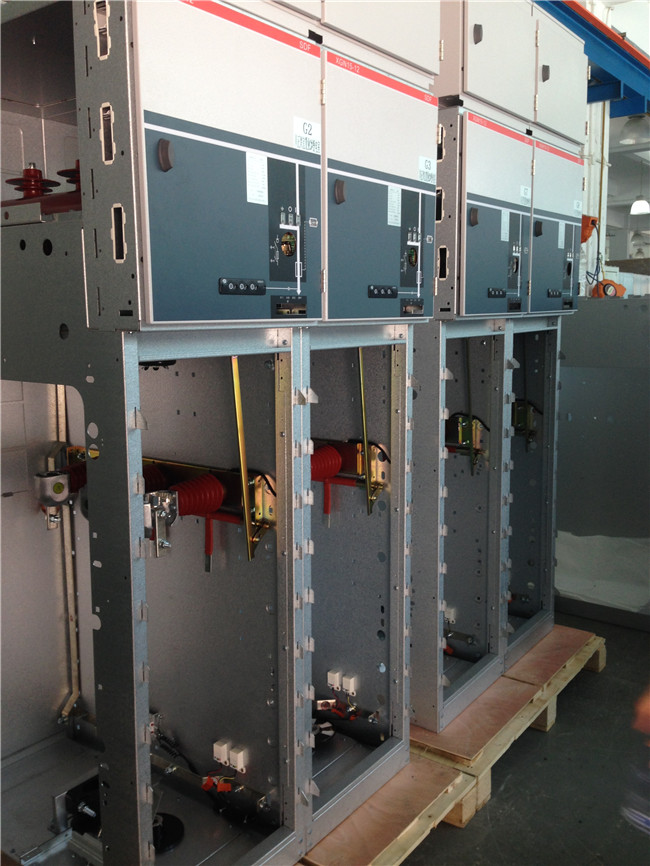

5.Photos

Light Weight Vacuum Resin Cast Current Transformer Fully Enclosed
